HYREDUCER In-line Reducer Splice Kits

Categories: ,
General Details

YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the center of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity and tin plated to resist corrosion. The YSR-TC family also features the BURNDY® color code system.

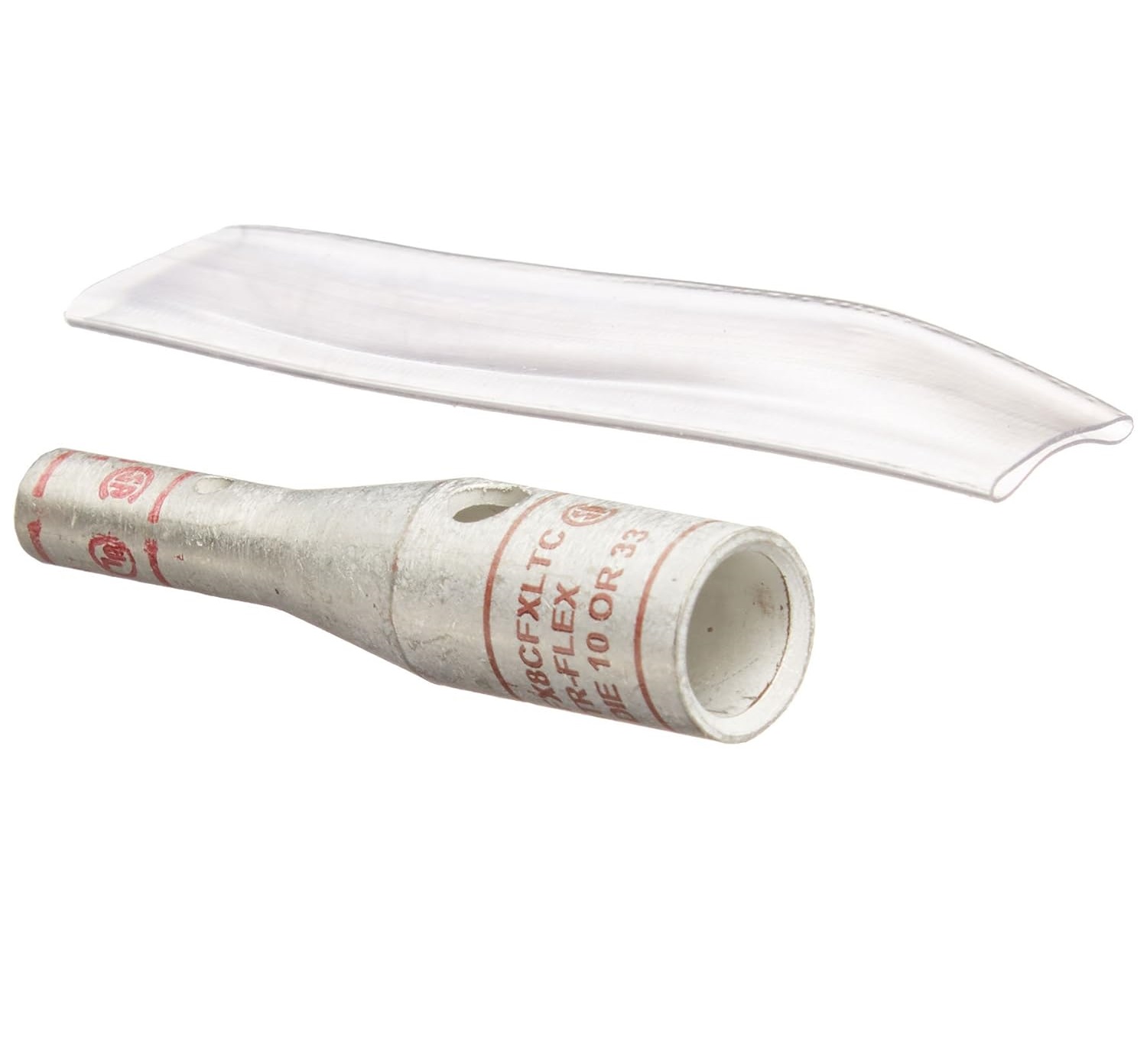

• Each splice kit includes one YSR-TC compression in-line splice reducer connector and heat shrink
• The YSR-TC type reducing compression splice connector provided in the kit is UL Listed in accordance with UL 486A-486B – Wire Connectors; UL Listed 90°C up to 35kV
• Designed confirgurations allow for copper code-to-code wire connections, copper code-to-flex wire connections, and copper flex-to-flex wire connections; see table for more complete details
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements •

YSR44FX39LTCKITC YSR44FX38FXLTCKITC YSR44FX34LTCKITC
YSR44FX34FXLTCKITC YSR44FX31LTCKITC YSR44FX30LTCKITC
YSR44FX29LTCKITC YSR44FX29FXLTCKITC YSR44FX28LTCKITC
YSR44FX28FXLTCKITC YSR3939LTCKITC YSR3938FXLTCKITC
YSR3934LTCKITC YSR3934FXLTCKITC YSR3931LTCKITC
YSR3930LTCKITC YSR3929LTCKITC YSR3929FXLTCKITC
YSR3928LTCKITC YSR3928FXLTCKITC YSR38FX34LTCKITC
YSR38FX34FXLTCKITC YSR38FX31LTCKITC YSR38FX30LTCKITC
YSR38FX29LTCKITC YSR38FX29FXLTCKITC YSR38FX28LTCKITC
YSR38FX26FXLTCKITC YSR3434FXLTCKITC YSR3431LTCKITC
YSR3429FXLTCKITC YSR3426FXLTCKITC YSR3425FXLTCKITC
YSR34FX31LTCKITC YSR34FX29FXLTCKITC YSR34FX28FXLTCKITC
YSR34FX28LTCKITC YSR34FX26FXLTCKITC YSR34FX25FXLTCKITC
YSR34FX2CFXLTCKITC YSR34FX4CFXLTCKITC YSR34FX6CFXLTCKITC
YSR3129FXLTCKITC YSR3128FXLTCKITC YSR3128LTCKITC
YSR3126FXLTCKITC YSR3125FXLTCKITC YSR25FX8CFXLTCKITC
YSR2CFX4CFXLTCKITC YSR2CFX6CFXLTCKITC YSR2CFX8CFXLTCKITC
YSR4CFX6CFXLTCKITC YSR4CFX8CFXLTCKITC YSR4CFX10CLTCKITC
YSR6CFX8CFXLTCKITC YSR6CFX10CLTCKITC YSR6CFX14CLTCKITC
YSR8CFX10CLTCKITC YSR8CFX14CLTCKITC YSR10CFX12CLTCKITC
YSR10CFX14CLTCKITC
