Y29BH
4.5Ton HYPRESS, 8-2/0AWG copper lug
4.5 Ton remote power operated hydraulic tool. The Y29BH HYPRESSM tool is designed for remote hydraulic power operation. Its small， “C” shaped head is lightweight， designed for use in confned areas， where visibility and space is limited. Accommodates D- (series) nest dies and Y29- (series) indentor dies， for use with code or fex connector/conductor applications. Ideal for OEM applications. Dies sold separately.
Installation Die Charts
Nest Indenter Size Nest Indenter
DV8L1 Y29PL #8 AWG DEV8L Y29PLE1
DV6L Y29PL #6 AWG DEV6L Y29PLE1
DV4L Y29PL #4 AWG DEV4L Y29PLE1
DV2L Y29PL #2 AWG DEV2L Y29PLE
DV1L Y29PL #1 AWG DEV1L Y29PLE
DV25L Y29PL 1/0 AWG DEV25L Y29PLE
DV26L Y29PL 2/0 AWG DEV26L Y29PLE
Easy placement/removal on continuous
conductor lengths
• Lightweight， portable head design
• Installs a wide variety of lugs and splices
• Ideal for AN， Flex and Code conductor terminations
• Hydraulic coupler
• C” shaped head
• 5-year limited warranty

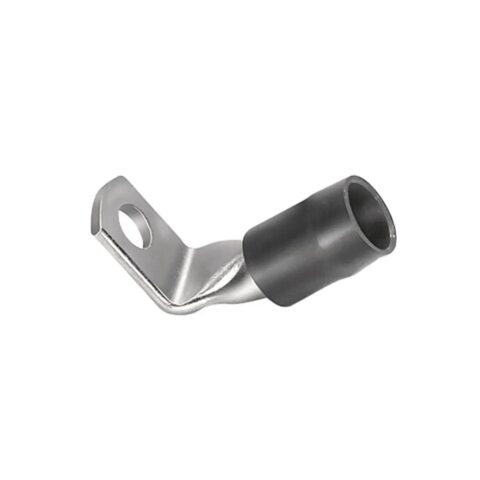

YAEV-RS | 绝缘无缝端子
