UGS Underground UF Splice

UF Splice Kit

Category:
General Details

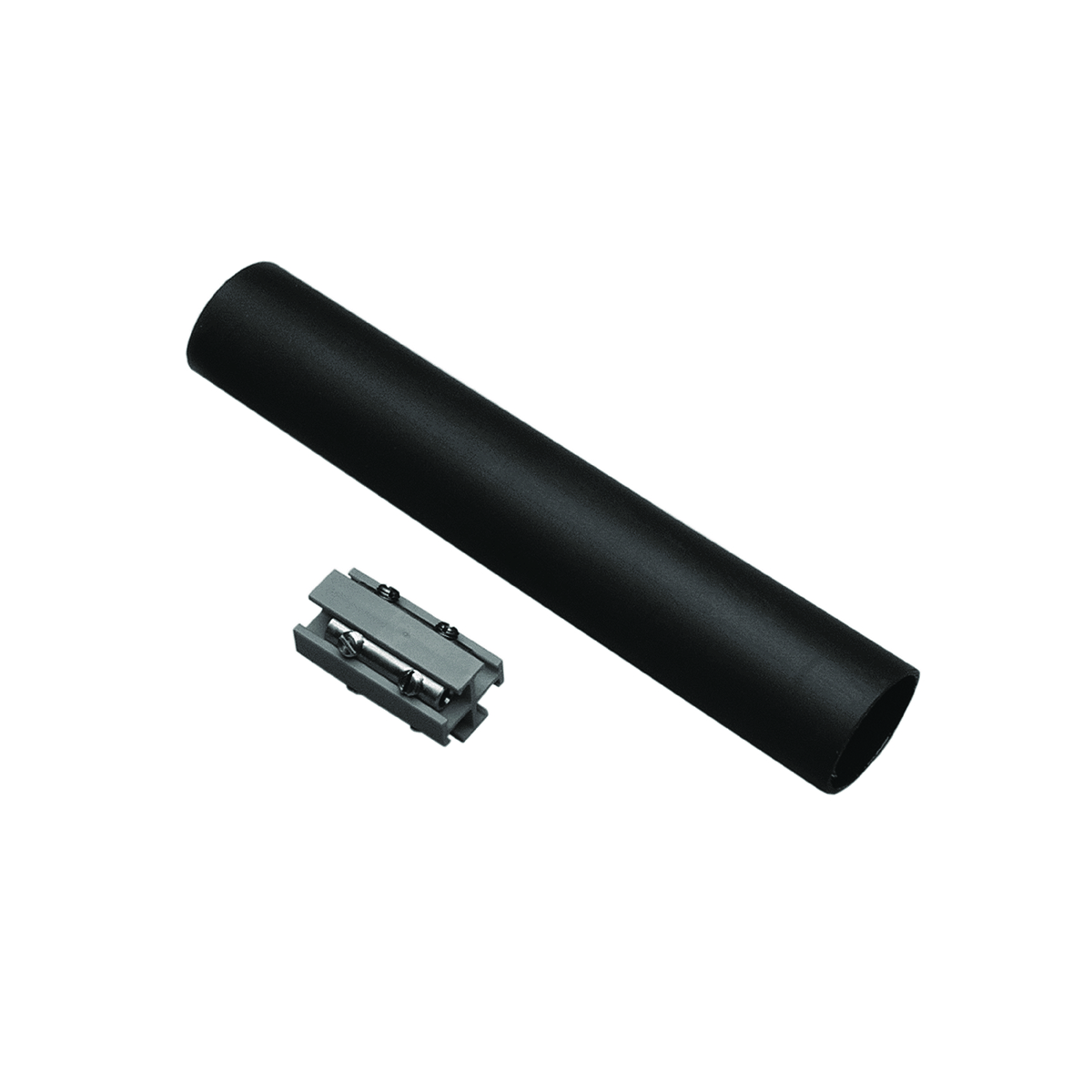

Type UGS UF Splice Kit Consists Of A UF Splice Connector And A Heavy Wall Heat Shrink Sleeve, The UF Splice Connector Can Accommodate Up To Four UF Conductors And Is Installed With Common Installation Tools, The Heavy Wall Heat Shrink Sleeve Is Lined With An Adhesive Material, Providing A Watertight Splice That Can Withstand Abrasions That May Occur During Direct Burial Applications, Heat Shrink Sleeve Installed With Standard Propane Torch, Or Electric Heat Gun, Includes: (4) 1/2 IN Hex Screws.

  • UGSKIT8-> Direct Burial Splice Kit, w/ Heavy Wall Heat Shrink Sleeve.
Details

General
Application For UF Direct Burial
Connector Type Splice;Reducer
Hex Size 1/2
Material Aluminum
Physical Attribute – Screw Type Allen
Plated N
Plating Type Unplated
Sub Brand SPLICE KIT
Temperature Rating 194
Type UGSKIT8
UPC 781810175255
Dimensions
Dimension – L Length Overall mm 203 mm
Dimension – Length Overall inch 8.00 in
Electrical Ratings
Rating – Minimum Voltage 600
Conductor Related
Conductor – AL Str Size 8 AWG
Conductor – AL Str Size Range 8 AWG
Conductor – Copper Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
Conductor – Copper Str Size Range 14 AWG-8 AWG
