YAEV | 绝缘无缝端子

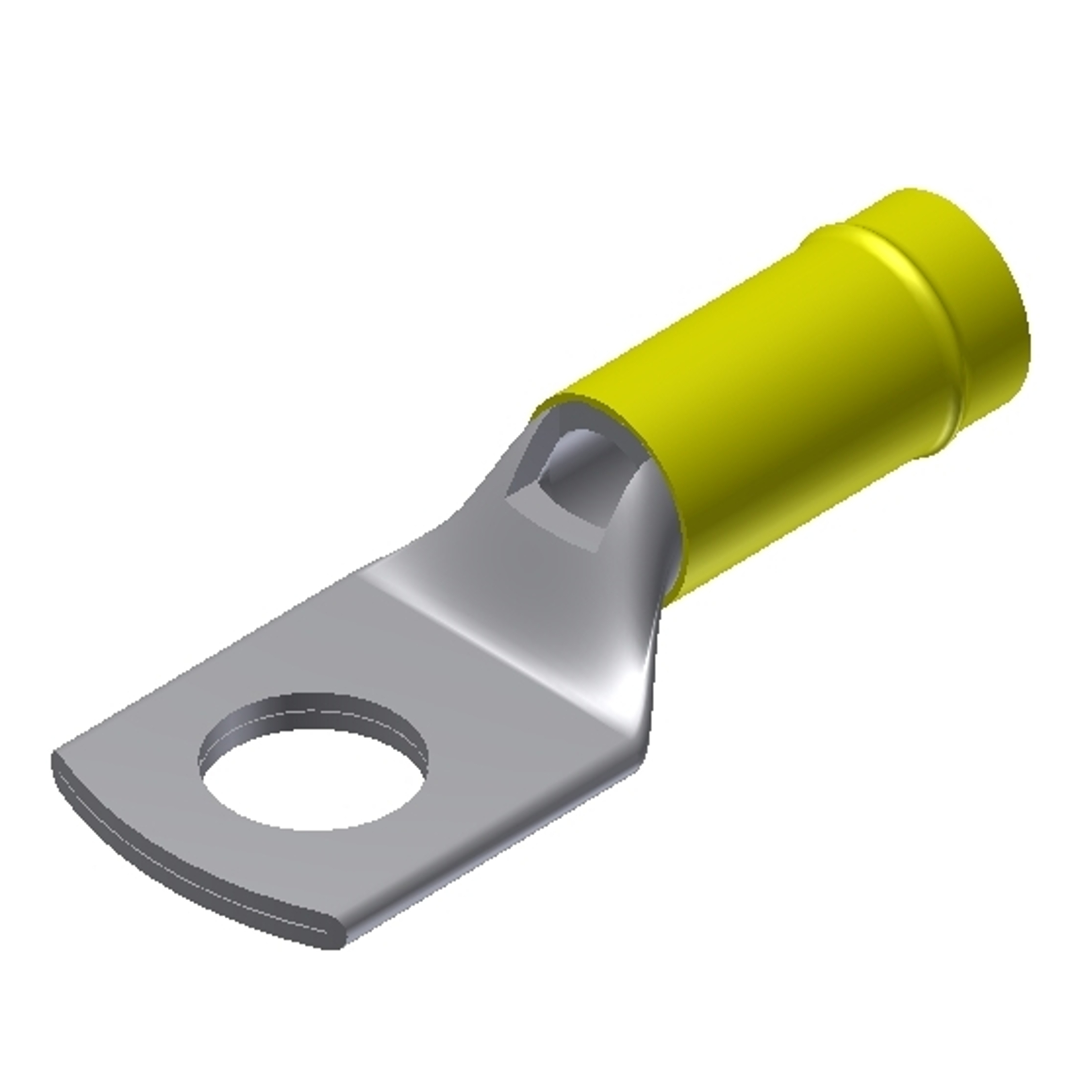

Terminal - Nylon Insulated — Ring-Tongue, 600 Volts Max., 105° C Max. meets SAE-AS7928
Insulated seamless terminals.
The INSULUG type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection.
YAEV18BOX YAEV14BOX YAEV10T7BOX YAEV10T11BOX YAEV10BOX
YAEV10L36BOX YAEV10T3BOX YAEV10T2BOX YAEV10T4BOX
YAEV8CL4BOX YAEV8CL14BOX YAEV8CL1BOX YAEV8CL2BOX
YAEV8CL3BOX YAEV8CLBOX YAEV6CL4M YAEV6CL1M YAEV6CLM
YAEV6CL2M YAEV6CL10 YAEV4CL3 YAEV4CL YAEV4CL4
YAEV4CL2 YAEV4CL5 YAEV2CL3 YAEV2CL1 YAEV2CL2
YAEV2CL YAEV2CL4 YAEV1CL1 YAEV1CL2 YAEV1CL
YAEV1CL4 YAEV1CL3 YAEV25L1 YAEV25L2 YAEV25L3
YAEV25L YAEV25L4 YAEV26L1 YAEV26L2 YAEV26L
YAEV26L3 YAEV8CH1 YAEV8CH14 YAEV8CH YAEV8CH2
YAEV8CH3 YAEV8CH4 YAEV6CH1 YAEV6CH YAEV6CH4
YAEV6CH2 YAEV6CH5 YAEV4CH3 YAEV4CH YAEV4CH4
YAEV4CH2 YAEV4CH5 YAEV2CH1 YAEV2CH3 YAEV2CH
YAEV2CH4 YAEV1CH2 YAEV1CH1 YAEV1CH YAEV1CH23
YAEV25H1 YAEV25H2 YAEV26H1 YAEV26H3
YAEV25H3 YAEV25H4 YAEV26H2 YAEV26H12 YAEV26H
The terminal is rated 105°C and meets SAE-AS7928(MS25036) requirements.
• Double thick tongue.
Provides maximum reliability and
electrical capacity plus an extra strong
terminal tongue.
• Manufactured from one-piece pure
electrolytic copper.
Provides high conductivity, low resistance
with no seams to split plus ductility
for excellent crimp forming properties.
• Electro-tin plated.
Provides long-lasting corrosion
resistance.
• Nylon insulation is locked in place.
Insulation will not move or twist off.
• 300 volt nylon insulation.
High dielectric strength and stability
in demanding oily environmental
conditions.
• Color Coded.
Provides quick, easy wire size
connector selection.
MRE1022
Hand-held ratchet tool with a stop plate for #10-22 insulated & uninsulated Terminals/Splices
