PATMDCUTPOLE
6-Ton pole cutting/crimping tool, using on copper,AAC,ACSR and guy wire - ASTM F711
6吨V型带电作业长杆电动液压断线钳
绝缘杆通过ASTM F711和IEC60855测试
杆长1.8米或2.0米
• 绝缘杆符合OSHA 1910.269标准，绝缘等级100KV
• 液压软管符合SAE J343标准100kV/Ft (5 minutes)
• 液压油符合ASTM D877标准大于37KV
• Hand-Stop操作安全线确保安全作业
• 可拆卸刀头可在剪切或压接之间选择
• 行星齿轮无级变速器平稳高速运转，无穷动力来源
• 3AH/5AH大容量锂电池超快速充电，两电一充
• 杆长1.8米总长2.1米，重量5.8KG
• 杆长2.0米总长2.5米，重量6.4KG
–ACSR切刀断线能力–
软铜线350 MCM
铝线636 MCM (AAC)ORCHID
AAC铝绞线 MCM
钢芯铝线556 MCM(26-7 DOVE)
–CUAL切刀断线能力–
铜线600 MCM
铝线636 MCM (AAC)ORCHID

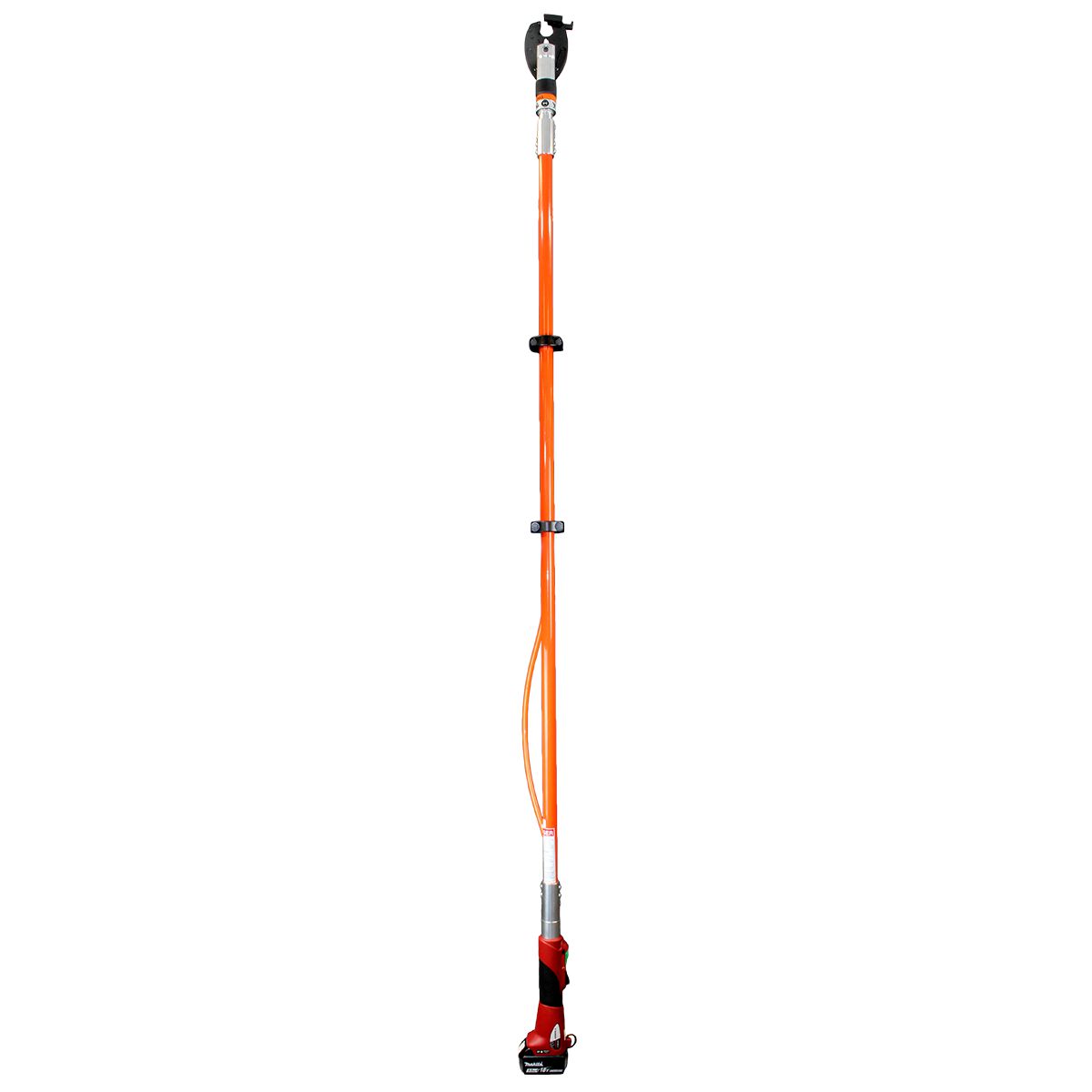

IN-LINE pole cutters are battery actuated hydraulic self contained cable cutter for cutting operations at heights. it’s incorporates a hydraulic pump generating considerable cutting force providing a consistent and reliable cut every time.it’s features interchangeable MD6 jaw assemblies, capable of both cutting and crimping (using W and X style dies). 350 rotatable jaw for operation in virtually any position.it’s supplied with battery charger and two batteries.
PATMDCUT82ALLIF Cutter jaw; 82” F711 Pole
PATMD682ALLIF Crimp Jaws (BG & D3); 82” F711 Pole
PATMD6882ALLIF Crimp Jaws (O & D3); 82” F711 Pole
PATMD6682ALLIF Crimp Jaws (D3 only); 82” F711 Pole
Output Force: 6 Tons
Operating Voltage: 18 V-DC Lithium-Ion
Recharge Time: 30 minutes
Warranty: 5 year limited warranty (excludes blades and pole)
Lifetime warranty on INFINITY DRIVE® 3 year on batteries and charger
