RACO锁紧接头
HUBBELL RACO颜色编码水密锁紧接头

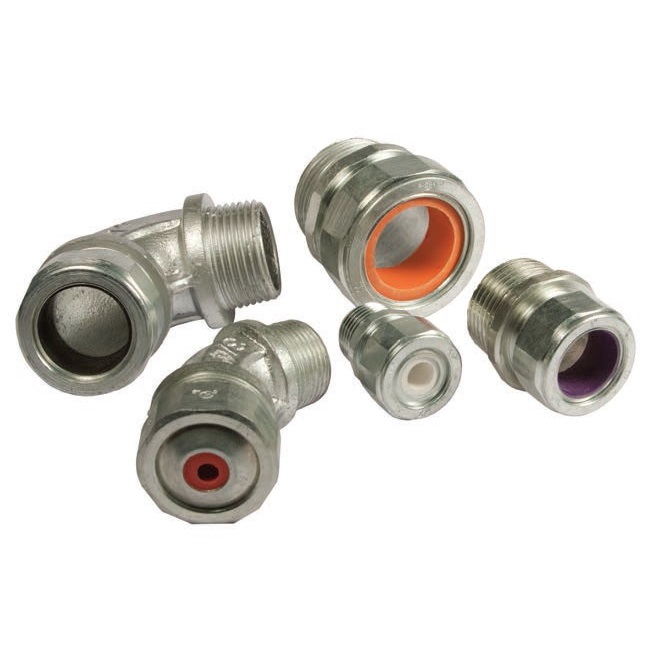

Cord Grip connectors / Cable glands
由钢材质或者可锻铸铁制成，符合UL和CSA，适用于Class I-Div.2, Class II-Div.1/2，Class III-Div.1/2危险场所；直管接头为钢材料制成，45˚和90˚弯头为可锻铸铁制成。
– 按照电缆直径进行颜色编码 – 便于快速识别
– 钢材料和可锻铸铁结构 – 提供机械强度和耐久性
– 金属部件经过电镀锌处理 – 具有防腐蚀功能
– 独特的密封圈设计 – 被拧紧时密封圈挤压向上迫使电线和周围形成一个液体密封
– 节省时间易于安装 – -不需要拆卸接头来安装电线
– NPT锥形外螺纹
——————————-
RACO电缆密封锁紧接头
RACO箱体、盖板和UL电缆密封锁紧接头可用于工业和OEM市场的多种应用。
RACO电缆锁紧接头可用于潮湿或干燥环境，由密封和非密封两大类组成，为电缆和管道提供水密以及应力消除，不论是管道或者线缆的平行对接、终端连接还是交叉连接，我们多种类接头产品必须有一款适用客户电气需求。由规格等级不同材料可锻铸铁、钢、铝或者压铸锌制成的锁紧接头符合UL认证，部分符合CSA认证。压铸锁紧接头适用于室内或室外的柔性金属液密管道和柔性非金属液密管道；热浸镀锌线夹设计用于固定刚性导管、IMC导管或者EMT导管，交叉、平行或垂直于线槽、钢梁和角架。
Straight connectors are available in steel; 45˚ and 90˚ connectors available in malleable iron
• Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification
• Steel and malleable iron construction provides mechanical strength and durability
• Metallic components are zinc-electroplated for corrosion protection
• Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal
• Time saving and easy installation – no need to disassemble the fitting for cord installation
• Male tapered thread NPT
For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable. RACO® liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2, Class II, Div. 1 and 2; Class III, Div. 1 and 2 hazardous locations.
