CI01

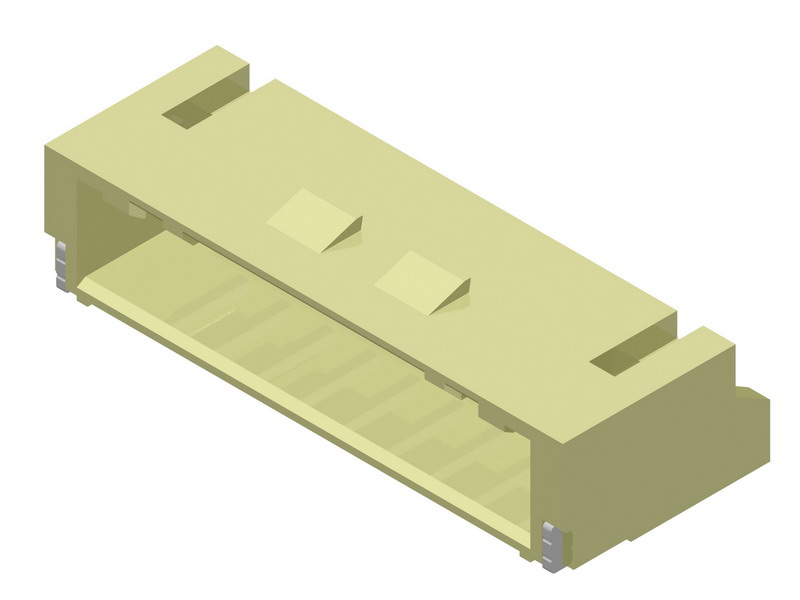

2.00mm(.079) Single Row Right Angle SMT Latch Type Headers
◎ Rated current and voltage : 2A 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 800 V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -25℃ ~ 105℃
◎ RoHS Compliant
| CIRCUITS | 10,12,14,16CIRCUTS | ||
|---|---|---|---|
| Plating Code | 1= Matte Tin Over Nickel Plated | ||
