CHC2

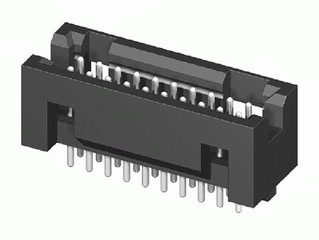

1.27mm Dual Row Board Mount Pin Header
◎ Current rating : 1 A 250V AC(r.m.s)
◎ Dielectric Withstanding Voltage : 600V AC for one minute
◎ Contact Resistance : ＜20mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -40℃ ~ 105℃
◎ RoHS Compliant
| CIRCUITS | 10 TO 100 CIRCUTS | ||
|---|---|---|---|
| Plating Code | 2= Gold Flash Plated over 50μ” Nickel
3= 15μ” Gold Plated over 50μ” Nickel 4= 30μ” Gold Plated over 50μ” Nickel |
||
