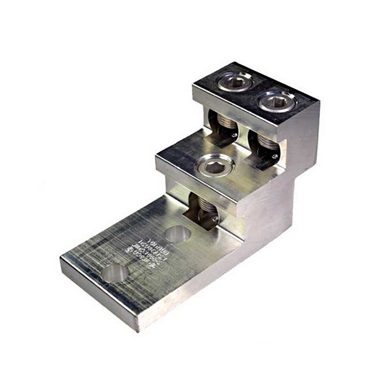

AL9CU stacked lugs

Aluminum and Copper Conductors
These panel board terminals allow multiple conductors to be terminated to equipment pads, bus bars, or other electrical equipment. Conductor ports are in a stacked arrangement to save space. They are made from high strength aluminum alloy and are tin-plated for low contact resistance.

• Dual rated AL9CU for both copper and aluminum conductor
• 600 Volt Rated
• UL Listed UL486A-486B; CSA Certified C22.2 No. 65
• Range taking conductor ports
• Each size can accommodate up to 4 conductors
• 1/2” diameter stud holes spaced 1-3/4” apart (NEMA-spacing)

K11A36U2N
K21A36U2N
K22A36U2N
K11A39U2N
K21A39U2N
K22A39U2N
