247 mixed power+signal
7 power and 2 signal contacts
General Details
Description

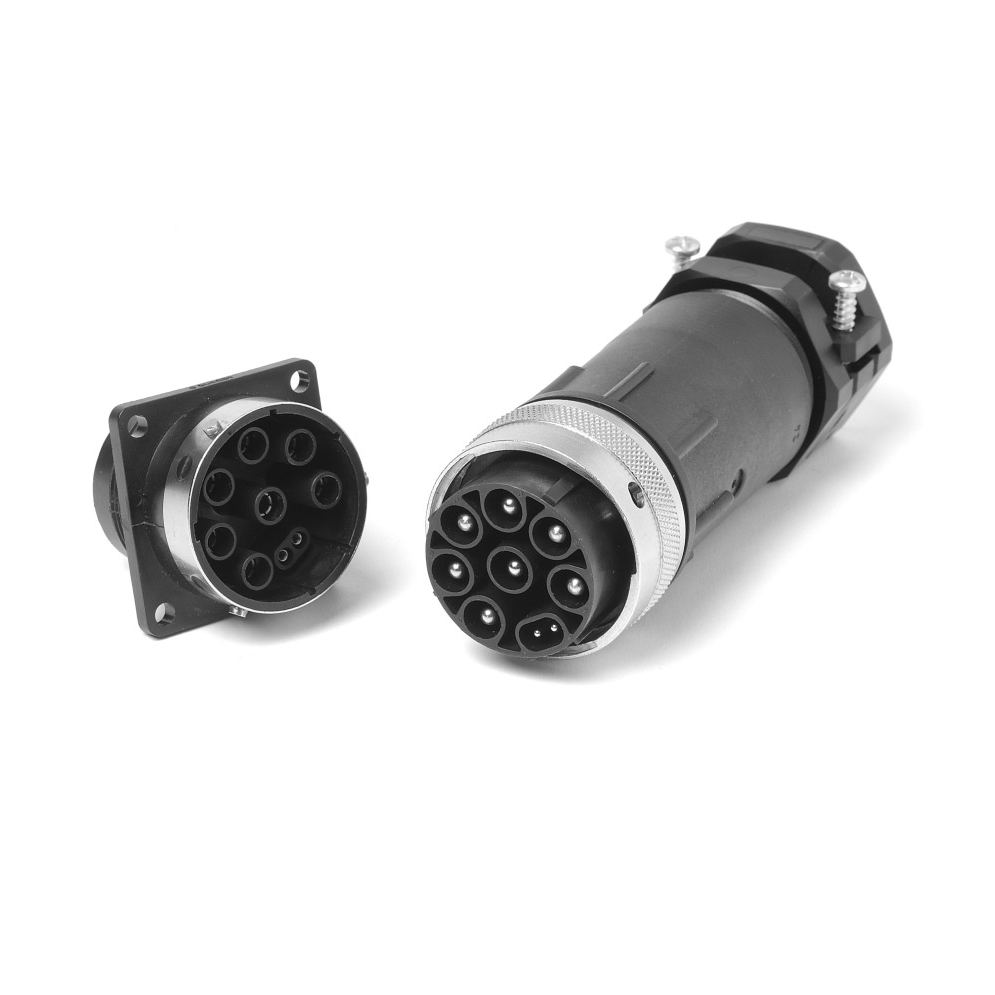

24-7 is a standard shell size 24 connector with a modified insert arrangement to accept
7 power contacts #8 (3.6mm) and 2 #16 (1.6mm) signal contacts.
Typical performance characteristics
• Power contacts #8 (3.6mm) for up to 44 Amp
• VDE 0110 Group C – 660V
• Central power cavity is advanced for grounding purposes.
Machined Socket contacts #16
Heavy duty, used on all of circular and Rectangular connectors, Dia=1.6mm
Machined pin contacts #16
Heavy duty, used on all of circular and Rectangular connectors, Dia=1.6mm
